25A 12V 24V to 5V 6V 7.5V 9V 3.3V 3.7V 4.2V DC-DC Step-down Buck Converter Car Power Supply

Model	HY-DL1224**25
Input rated voltage	12V24V
Input voltage range	10V-40V
Efficiency	93%
Output voltage	3.3V 3.7V 4.2V 5V 6V 7.5V 9V(minimum pressure difference:3V)
Output current	25A MAX
Output rated power	82.5W / 92.5W / 105W / 125W / 150W / 187.5W / 225W
Output peak power	99W / 111W / 126W / 150W / 180W / 225W / 270W
Voltage regulation	< 1%
Load regulation	< 2%
Working temperature	-40°c ~+85°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Module Properties	non-isolated buck module(buck)
Rectification	synchronous rectification
Waterproof rating	IP68
Full load temperature rise:	50°c
Protection	Over-current, Over-temperature, Short-circuit protection, Instant absorption of high voltage protection, waterproof IP68 design, anti-shock protection
Input Reverse Polarity Protection	NONE( (Please Series diode at the input port.)
NW	280g

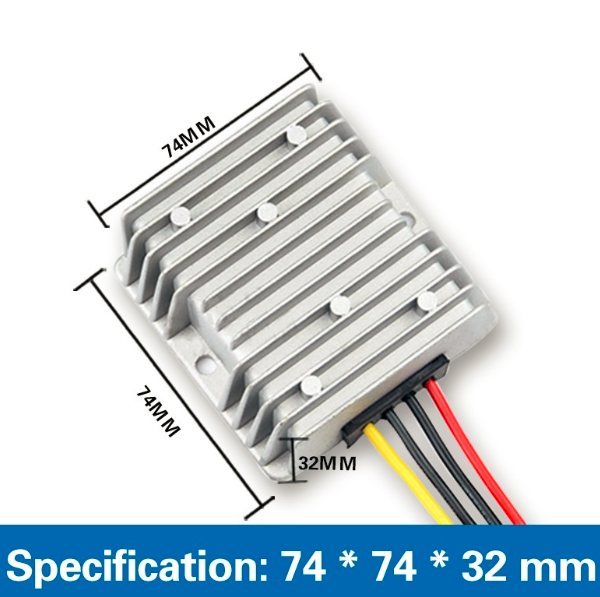

Product size	747432mm
Other ouput current available	10A/15A/20A/30A (pls contact our sales team if need)
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged >To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
