12V to 36V 30A 1080W

Product Name

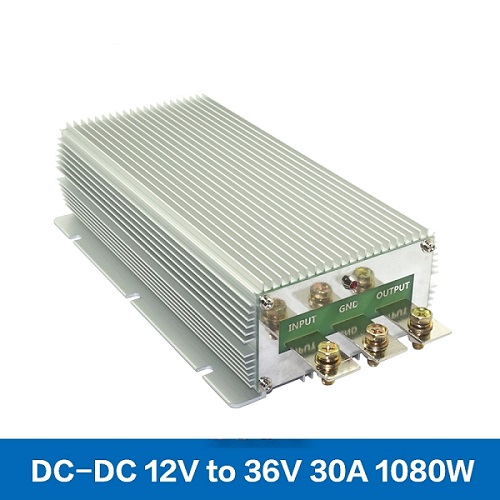

DC DC Converter 12V to 36V 30A 1080W

Brand

HYCO

Model No.

Module Properties

non-isolated boost module

Rectification

synchronous rectification

Input

Input Voltage

DC 12V

Input Voltage Range

DC 10-25V

Output

Output Voltage

DC 36V

Output Current

30A

Output Power

1080W

 Conversion Efficiency

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 230mV

No-load current

30mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Over-voltage protection

Overheat protection

 Input/Output Installation

Application

Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

Wind Power System, Solar Panel Power System

Electrical appliances, water pumps, industrial equipment, telecommunications and so on.

Certification

CE/RoHS/FCC

  Case Material

Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on

  Product Size (L x W x H)

220*127*63mm (Machine Size:265*127*63mm/Packing Size:300*152*100mm)

Product Weight

 2.4kg

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM&ODM Service
