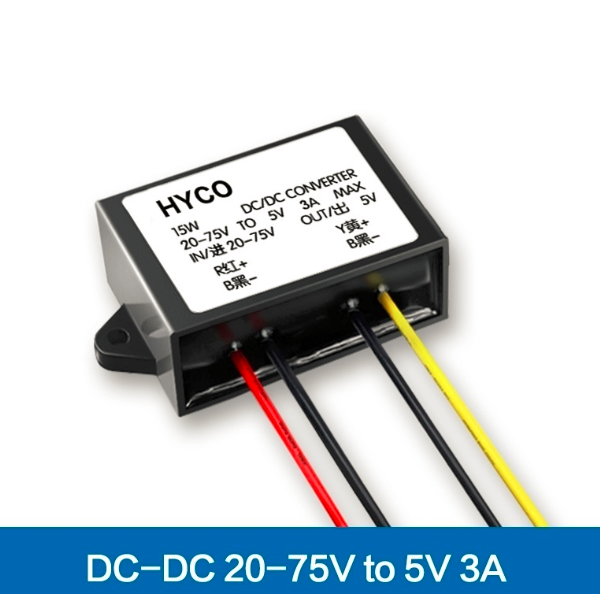

20-75V to 5V 3A 5A 8A

Product Name

DC DC Converter 20-75V to 5V

Brand

HYCO

Model No.

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 48V

Input Voltage Range

DC 20-75V

Output

Output Voltage

DC5V

Output Current

3A / 5A / 8A

Output Power

15W / 25W / 40W

 Conversion Efficiency

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

<100mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Overheat protection

Short-circuit protection

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it.

Application

Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts

GPS Navigation, Monitoring, Air conditioning

LED car display, DVD, LED bulb lights

Wind Power System, Solar Panel Power System

Electrical appliances, water pumps, industrial equipment, telecommunications and so on.

Certification

CE/RoHS/FCC

Case Material

Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

Product Size (L x W x H)

58*40*22mm

Product Weight

100g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM&ODM Service
