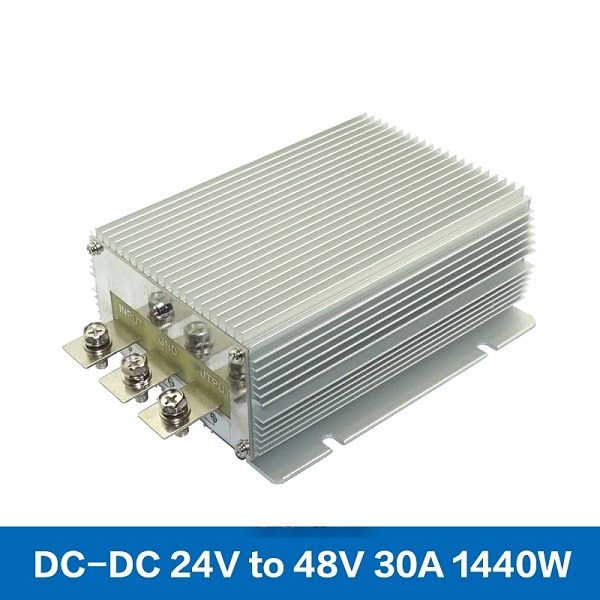

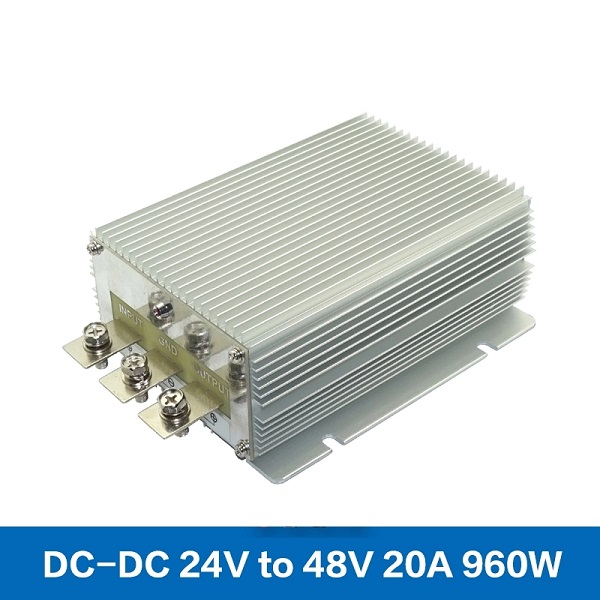

HIGH POWER 24VDC to 48VDC Converter 20A 30A DC-DC Step-up
|
Product Name |
DC DC Converter 24V to 48V |
|
|
Brand |
HYCO |
|
|
Model No. |
HY-SDL244820 / HY-SDL244830 | |
|
Module Properties |
non-isolated boost module |
|
|
Rectification |
synchronous rectification |
|
|
Input |
||
|
Input Voltage |
DC 24V |
|
|
Input Voltage Range |
DC 20-35V |
|
|
Output |
||
|
Output Voltage |
DC 48V |
|
|
Output Current |
30A |
|
|
Output Power |
1440W |
|
|
Conversion Efficiency |
97% (half load), 96% (full load) | |
|
Voltage regulation |
±1% |
|
|
Load regulation |
± 2% |
|
|
Ripple (Full load test) |
< 200mV |
|
|
No-load current |
<30mA |
|
|
Working Temperature |
-40~80℃ |
|
|
Waterproof Rating |
IP68 |
|
|
Protection |
Over-current protection |
|
|
Over-voltage protection |
||
|
Overheat protection |
||
|
Input/Output Installation |
INPUT---------Input Positive“+”
GND------Input/Output Negative "-"
OUTPUT------Output Positive "+"
|
|
|
Application |
Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System Electrical appliances, water pumps, industrial equipment, telecommunications and so on. |
|
|
Certification |
CE/RoHS/FCC |
|
|
Case Material |
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on |
|
|
Product Size (L x W x H) |
150*127*63mm |
|
|
Product Weight |
1.70kg |
|
|
Warranty |
12 months, lifetime up to 100,000 hours |
|
|
Cooling Way |
Free air convection |
|
|
OEM&ODM Service |
Accept | |
