Isolated 40-135V DC TO 24V DC 1.5A 36W 2.5A 60W Step Down DC DC Converter

Product Name

DC 42-135V to 24V 1.5A 2.5A Max

Brand

HYCO

Model No.

Module Properties

Isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 48V 60V 72V 84V 96V 108V 120V

Input Voltage Range

DC 42-135V

Output

Output Voltage

DC 24V

Output Current

1.5A 2.5A Max

Output Power

36W 60W Max

 Conversion Efficiency

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

< 100mA

Working Temperature

-25~85℃

Waterproof Rating

IP55

Protection

Over-current protection

Overheat protection

Short circuit protection

Low voltage protection(please contact us to set the data)

 Input/Output Reverse Polarity Protection

                                        Option

Certification

CE FCC ROHS IC ISO7637

Case Material

Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust

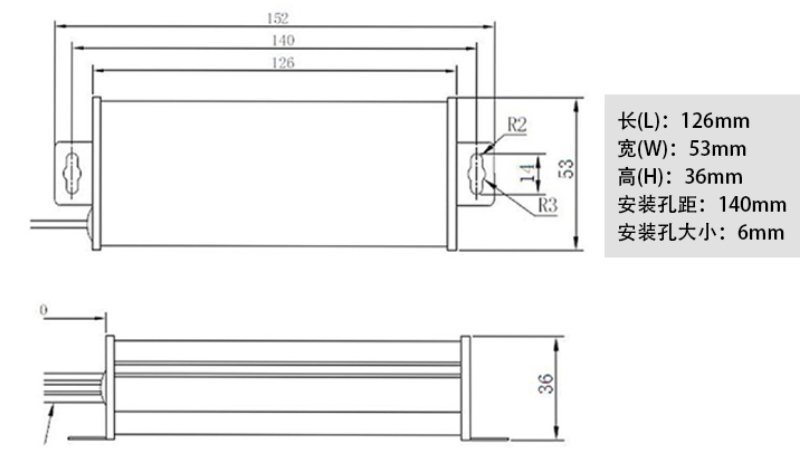

Product Size (L x W x H)

126*53*36mm

Installation Cable Length

 12-13cm

Product Weight

 200g

Warranty

18 months

Cooling Way

Free air convection

OEM Service

Customized Service

Support
