36V/48V/60V to 12V

  • 48V to 12V 10A
48V to 12V 10A

48V to 12V 10A

  • Model Number: HY-DL481210
  • Input Voltage: 48V
  • Output Voltage: 12V
  • Output Current: 10A MAX
  • Product description: 48V to 12V 10A
  • INQUIRY

48VDC to 12VDC 10 AMP 120W Golf Cart Voltage Reducer DC-DC Step Down Power Converter for car stereo

Product Name 48vdc to 12vdc converter
Model HY-DL481210
Input rated voltage 24V 36V 48V DC
Input voltage range 20-60V DC
Efficiency 93% (half load), 91% (full load)
Output voltage 12V
Output current 10A MAX
Output rated power
120W
Output peak power
150W
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)

Module Properties

non-isolated buck module(buck)

Rectification synchronous rectification
Waterproof rating
IP68
Full load temperature rise: 50°c
Protection Over-current, Over-temperature, Short-circuit protection

Auto-recovery when device is back to normal operating,

waterproof IP68 design, anti-shock protection

Input Reverse Polarity Protection None (Please Series diode at the input port.)
NW 280g

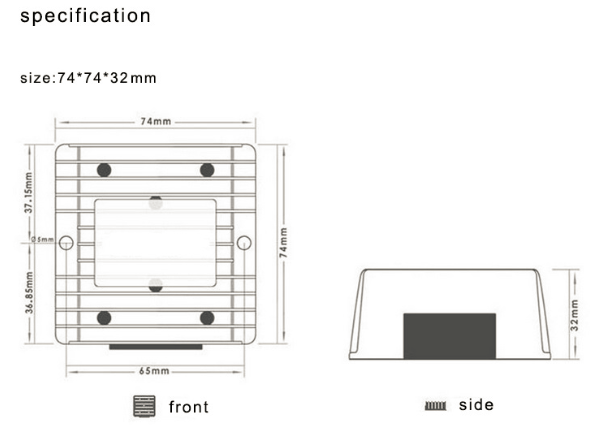

Product size 74*74*32MM

Other output current

option for 48V to 12V

3A, 5A 10A, 15A, 20A,25A(pls contact our sales team if need)

Attention:
>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
