36V/48V/60V to 12V

48V to 12V 50A

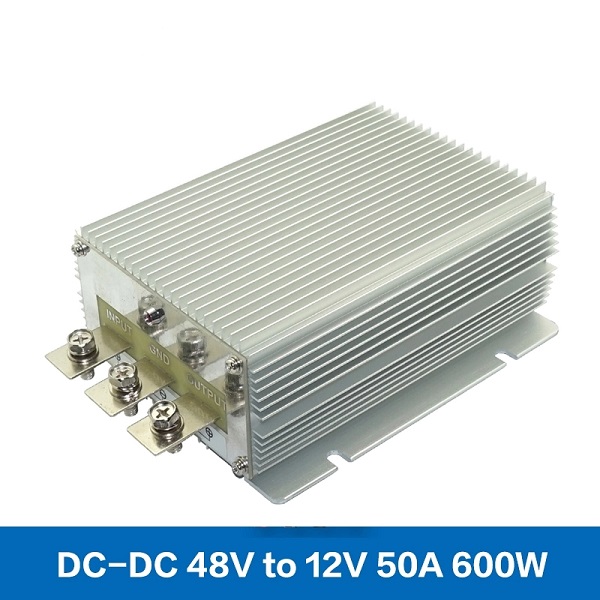

Non-isolated DC 48V to 12V 50A DC Converter for 600w 12v 50 amp power supply

Product Name		DC DC Converter 24V to 12V 50A 600W
Brand		HYCO
Model No.		HY-DL481250
Module Properties		non-isolated buck module
Rectification		synchronous rectification
Input
Input Voltage	DC 48V
Input Voltage Range	DC 35-60V
Output
Output Voltage	DC 12V
Output Current	50A
Output Power	600W
Conversion Efficiency	96% (half load), 95% (full load)
Voltage regulation	±1%
Load regulation	± 2%
Ripple (Full load test)	< 100mV
No-load current	50-60mA
Working Temperature	-40~80℃
Waterproof Rating	IP68
Protection	Over-current protection
	Over-voltage protection
	Overheat protection
	Short-circuit protection
Input/Output Installation	INPUT---------Input Positive“+” GND------Input/Output Negative "-" OUTPUT------Output Positive "+"
Application	Electric motors, fans, Audio, Trucks, Golf Carts ,Forklifts GPS Navigation, Monitoring, Air conditioning LED car display, DVD, LED bulb lights Wind Power System, Solar Panel Power System Electrical appliances, water pumps, industrial equipment, telecommunications and so on.
Certification	CE/RoHS/FCC
Case Material	Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
Product Size (L x W x H)	15012763mm
Product Weight	1.65kg
Warranty	12 months, lifetime up to 100,000 hours
Cooling Way	Free air convection
OEM&ODM Service	Accept
