12VDC to 24VDC Boost Converter 5A 120W

Product Name

12VDC to 24VDC Boost Converter 5A 120W

Brand

HYCO

Model No.

HY-SL122405

Module Properties

non-isolated boost module

Rectification

synchronous rectification

Input

Input Voltage

DC 12V

Input Voltage Range

DC 10-20V

Output

Output Voltage

DC24V

Output Current

5A

Output Power

120W

Conversion Efficiency

90%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

20-30mA

Working Temperature

-25~65℃

Waterproof Rating

IP67

Certification

CE/RoHS/FCC

Case Material

Aluminum Alloy, anti-shock, anti-drop, anti-moisture, anti-dust and so on

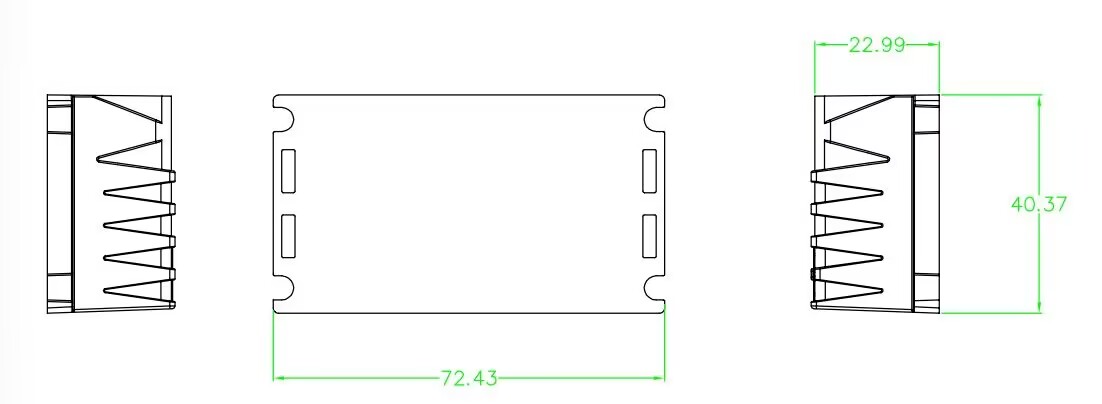

Product Size (L x W x H)

72.43*40.37*22.99mm

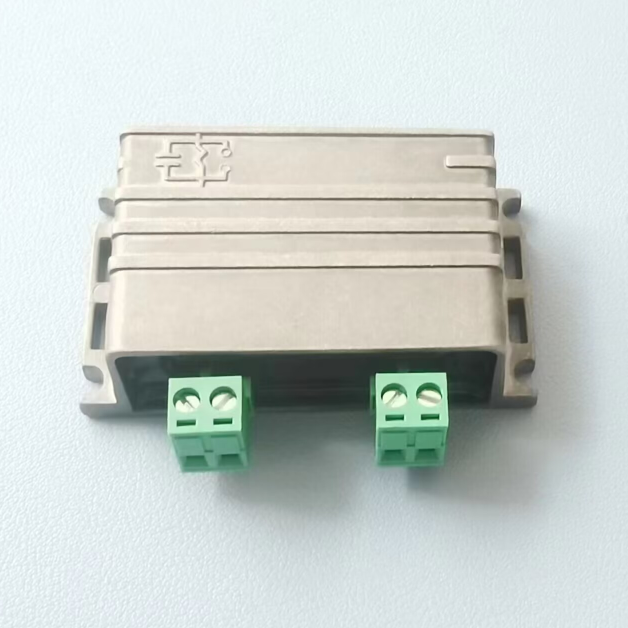

Installation Cable Length

cable 13cm length or terminal without cable

Warranty

12 months

Cooling Way

Free air convection

OEM Service

Support
