12V/24V to 5V

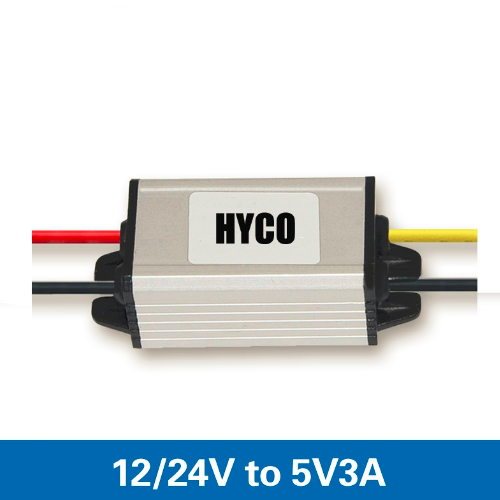

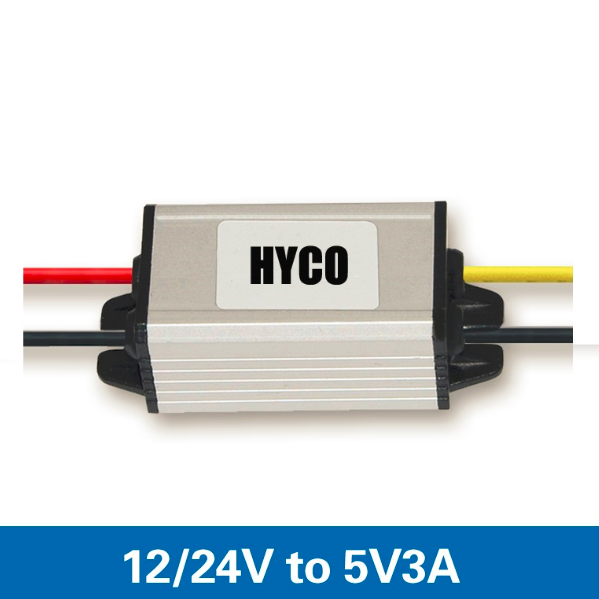

  • 12/24V to 5V 3A
  • 12/24V to 5V 3A
12/24V to 5V 3A 12/24V to 5V 3A

12/24V to 5V 3A

  • Model Number: HY-241205XL
  • Input Voltage: 8-40v
  • Output Voltage: 5V
  • Output Current: 3A MAX
  • Product description: 12/24V to 5V 3A
  • INQUIRY

Model 241205XL
Input rated voltage 12V24V
Input voltage range 8-40V
Efficiency
≥ 90%
Output voltage 5V(minimum pressure difference:3V)
Output current 3A MAX
Output rated power
15W
Output peak power
18W
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)

Module Properties

non-isolated buck module(buck)

Rectification synchronous rectification
Waterproof rating
IP68
Full load temperature rise:    50°c
Protection Over-current, Over-temperature,  Short-circuit protection,

Auto-recovery when device is back to normal operating,

waterproof IP68 design, anti-shock protection

Input Reverse Polarity Protection
NONE( (Please Series diode at the input port.)
NW 50G

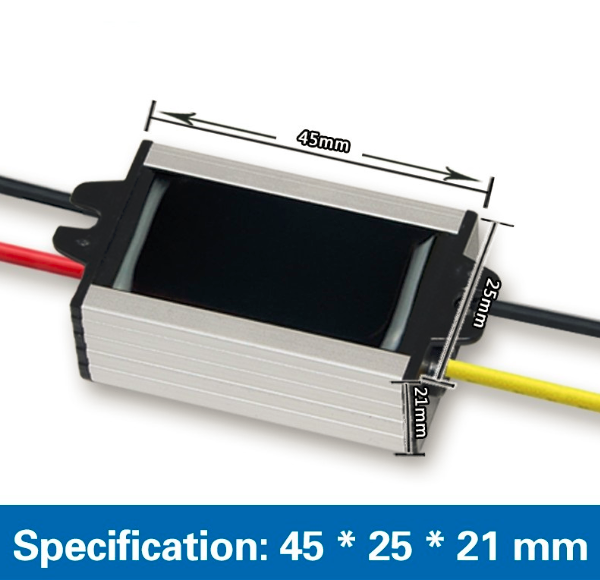

Product size  45*25*21mm

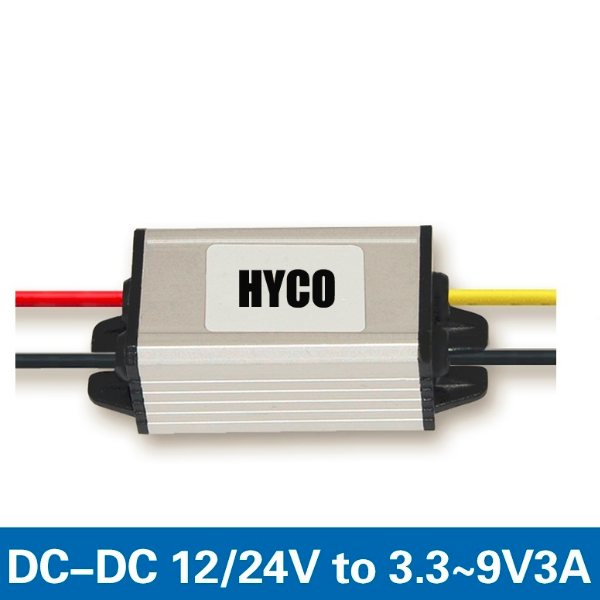

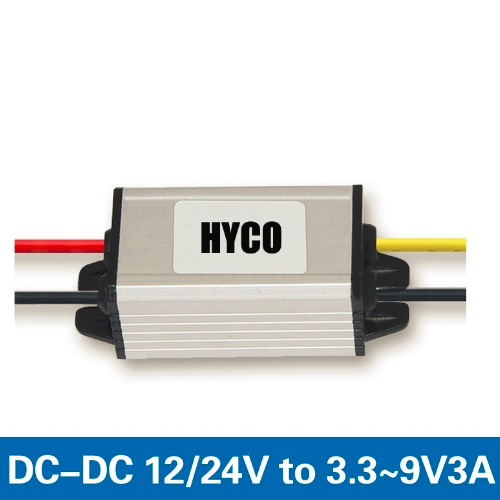

Other ouput voltage available

3.3V, 3.7V, 4.2V, 5V, 6V, 7.5V, 9V

(pls contact with our sales manager if need)

 Attention:

>Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
>To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.
