12V/24V to 5V

  • 12V to 5V for Car Camera
  • 12V to 5V for Car Camera
12V to 5V for Car Camera12V to 5V for Car Camera

12V to 5V for Car Camera

  • Model Number: HY-1503B
  • Input Voltage: 8-15V
  • Output Voltage: 5V
  • Output Current: 2.5A MAX
  • Product description: 12V to 5V for Car Camera
  • INQUIRY

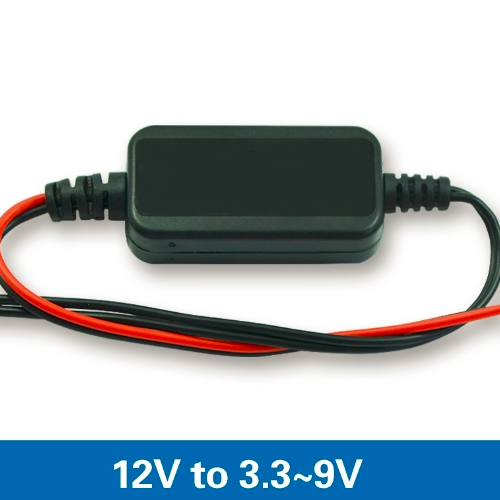

Ultra Slim Thin 12V to 5V DC-DC Step Down Converter for Car Camera DVR Dash Cam, Output 6V/7.5V/9V or Customize Available


Model HY-1503B
Input rated voltage DC 12V
Input voltage range DC 8-15V
Efficiency 94% (half load), 91% (full load)
Output voltage 5V
Output current 2.5A MAX
Output rated power
12.5W
Output peak power
15W
Voltage regulation < 1%
Load regulation < 2%
Working temperature

-40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use,

or to enhance heat dissipation)

Module Properties

non-isolated buck module(buck)

Rectification synchronous rectification
Waterproof rating
IP68
Full load temperature rise: 50°c
Protection Over-current, Over-temperature,  Short-circuit protection,Input Reverse Polarity Protection
NW 14G
Product size  43*22*11MM

Other output Volt

option for 12v to

3.3V, 4.2V, 6V, 7.5V, 9V(pls contact with our sales manager if need)



 Attention:

>Pls install according to the the label strictly
>To assure this converter has the sufficient voltage and power, pls make sure the voltage and power input is enough.
