48V to 24V 1A 2A 3A

Product Name

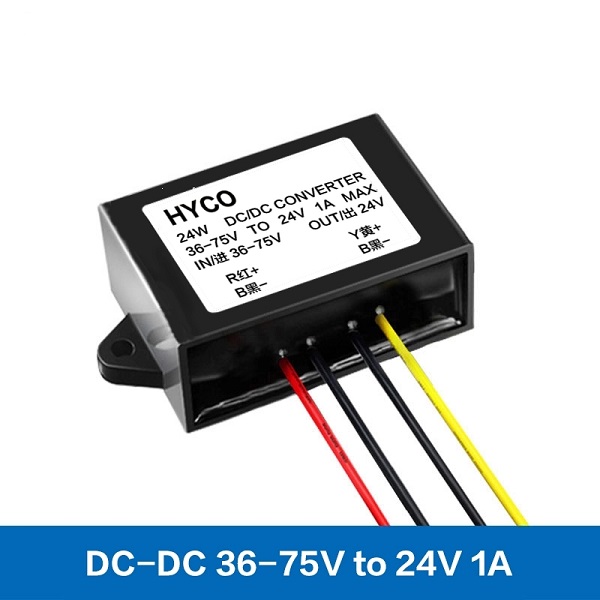

dc-dc converter 48v to 24v

Brand

HYCO

Model No.

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 48V

Input Voltage Range

DC 36-75V

Output

Output Voltage

DC 24V

Output Current

1A / 2A / 3A

Output Power

24W / 48W / 72W

 Conversion Efficiency

>90%(full load),95% max

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 150mV

No-load current

< 100mA

Working Temperature

-40~80℃

Waterproof Rating

IP68

Protection

Over-current protection

Output Short circuit protection

 Input/Output Reverse Polarity Protection

No, please follow label instructions wiring strictly: red for input positive, black is negative, yellow for output positive. If you need this function, please contact with us to customize it.

Certification

CE/RoHS/FCC

Case Material

Plastic, anti-shock, anti-drop, anti-moisture, anti-dust and so on

Product Size (L x W x H)

58*40*22mm

Installation Cable Length

 13-14cm

Product Weight

 105g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM Service

Accept OEM logo/label/manual/packing box, Contact HYCO Now!

Customized Service

Accept customized converter such as input/output voltage, cable, interface and etc, Contact HYCO Now!
