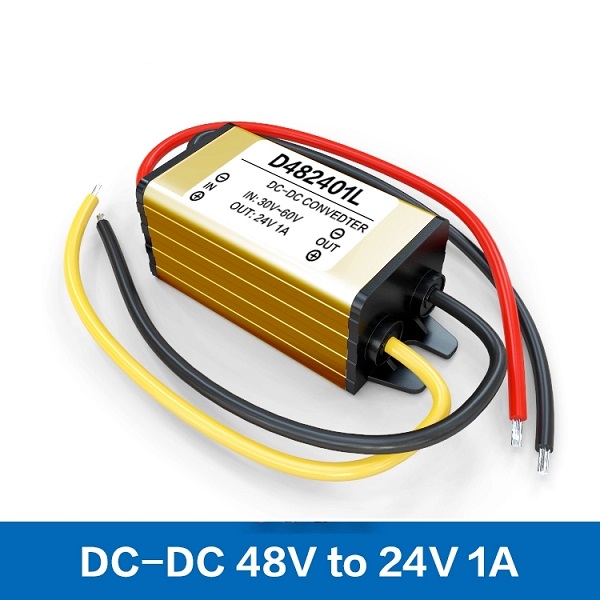

Waterproof 48V to 24V DC Step Down Converter (30-60V) 36V52V54V50V to 24V 1A/1.5A/2A Buck Car Power Supply Module
Product Name
DC DC Converter 48V to 24V
Brand
HYCO
Model No.
Module Properties
non-isolated buck module
Rectification
synchronous rectification
Input
Input Voltage
DC 48V
Input Voltage Range
DC 30-60V
Output
Output Voltage
DC 24V ± 0.25V
Output Current
1A / 1.5A / 2A
Output Power
24W / 36W / 48W
Conversion Efficiency
Voltage regulation
±1%
Load regulation
± 2%
Ripple (Full load test)
< 100mV
No-load current
0.25mA
Working Temperature
-40°c ~ +85°c
Waterproof Rating
IP68
Protection
Over-current protection 4A
Over-voltage protection
Overheat protection
Short-circuit protection
Input Reverse Polarity Protection
Application
Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles
Wind Power System,Solar Power System,
Electromotor,Telecommunications,Boat & Yacht and so on...
Certification
CE/RoHS/FCC
Case Material
Aluminum, anti-shock, anti-drop, anti-moisture, anti-dust and so on
Cable Length
12-14cm
Product Size (L x W x H)
46*24.5*22mm
Product Weight
45g
Warranty
12 months, lifetime up to 100,000 hours
Cooling Way
Free air convection
OEM&ODM Service
HY-D482401L/HY-D4824015L/HY-D482402L
95%
Accept
