12V/24V to 5V

  • 12V24V to 5V 20A for LED
  • 12V24V to 5V 20A for LED
12V24V to 5V 20A for LED12V24V to 5V 20A for LED

12V24V to 5V 20A for LED

  • Model Number: HY-B122420
  • Input Voltage: 12V 24V
  • Output Voltage: 5V
  • Output Current: 20A MAX
  • Product description: 12V24V to 5V 20A for LED
  • INQUIRY

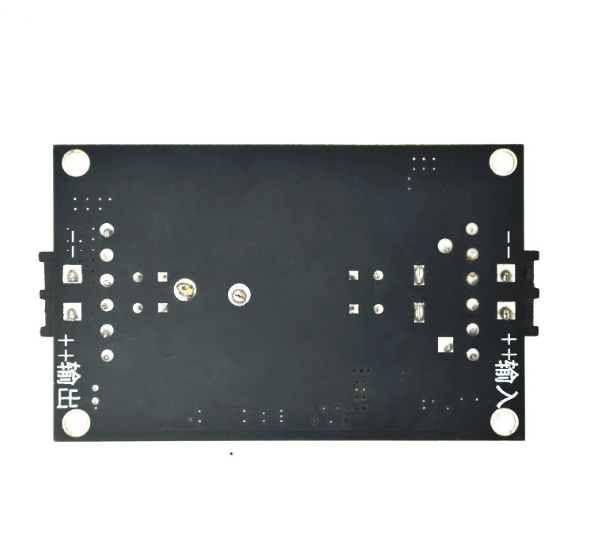

100W Electronic LED Converter DC-DC Buck Converter 12V 24V to 5V 20A Power Supply for P10 Led Display Module

Product Name

DC DC Converter 12V24V to 5V 20A 100W

Brand

HYCO

Model No.

HY-B122420

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 12V 24V

Input Voltage Range

DC 10-35V

Output

Output Voltage

DC 5V

Output Current

20A

Output Power

100W

 Conversion Efficiency

95%

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 100mV

No-load current

<100mA

Working Temperature

-40~80℃

Waterproof Rating

No

Protection

Over-current protection

Over-voltage protection

Overheat protection

Short-circuit protection

Application

 Car LED Display Screen

Certification

CE/RoHS/FCC

  Case Material

no case

  Product Size (L x W x H)

111*60*17.5mm

Product Weight

 110g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM&ODM Service

 Accept
