24V 12V to 5V 10A

Product Name

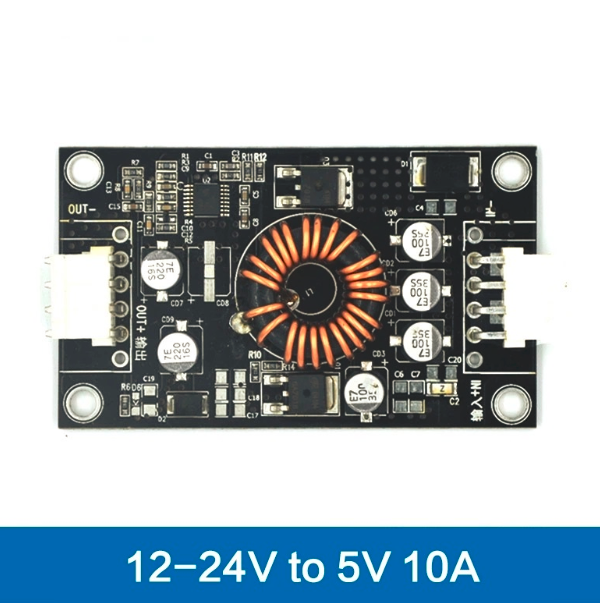

DC DC Converter 12V24V to 5V 10A 50W

Brand

HYCO

Model No.

Module Properties

non-isolated buck module

Rectification

synchronous rectification

Input

Input Voltage

DC 12V 24V

Input Voltage Range

DC 10-35V

Output

Output Voltage

DC 5V

Output Current

10A

Output Power

50W

 Conversion Efficiency

Voltage regulation

±1%

Load regulation

± 2%

Ripple (Full load test)

< 100mV

No-load current

<100mA

Working Temperature

-40~80℃

Waterproof Rating

No

Protection

Over-current protection

Over-voltage protection

Overheat protection

Short-circuit protection

Application

Certification

CE/RoHS/FCC

  Case Material

no case

  Product Size (L x W x H)

76*45*12.5mm/76*45*12.7mm/76*45*12.8mm

Product Weight

 70g

Warranty

12 months, lifetime up to 100,000 hours

Cooling Way

Free air convection

OEM&ODM Service
